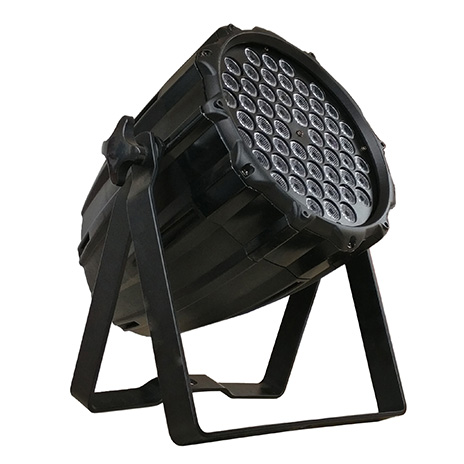

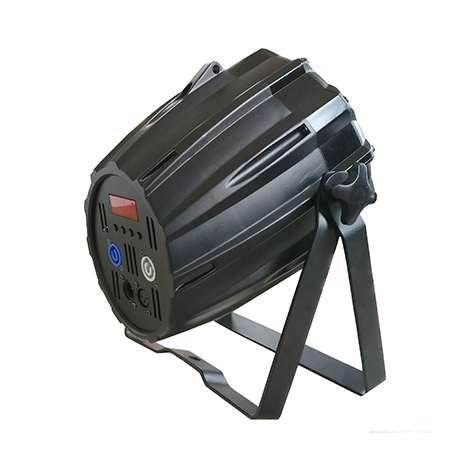

54 PCS 3W LED PAR LIGHT
Model：EC-P543B


54 x 3W RGBW LED

Latest linear dimming technology, no flicker output

Unique structure design, excellent natural heat dissipation effect

Multi-angle optional, more flexible for spread light

Double hangers design can be used on the ground

DMX control





Photometrics
Light Source:

3W LED

Beam Angle:

25°

Key Features
Color Mixing:

R12+G18+B18+W6

Strobe: 0-25 Hz
Dimming:

0-100% linear dimming

Control
Protocol: DMX512
DMX Channels:

6/10

Built-in Programs:
 Yes
Display:  4 Digital LED display figures
Power
Mains: 100 - 240 VAC, 50/60 Hz
Consumption:

150W

I/O
Power connections: PowerCon In/Out
Data connections: XLR In/Out for DMX
Housing
Material: Casting Aluminum
IP rating: IP20
Thermal
Cooling: Fan Cooling
Max. Ambient: 40°C
Min. Ambient: 0°C
Max. Housing: 66°C
Physical
Dimensions:

290 x 239 x 337 mm

Weight: 4.5 KG
Misc / Options
Power Cord: Included (PowerCon)
Mounting Clamp: Not included
Touring Case: Not included
