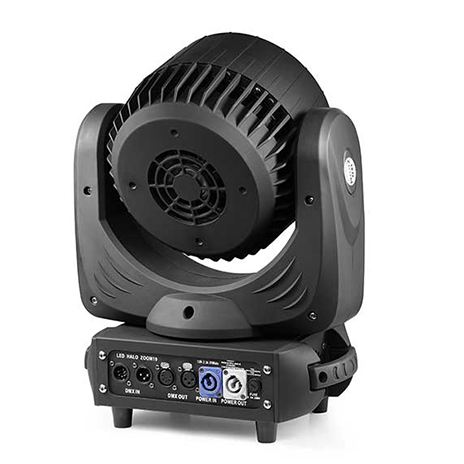

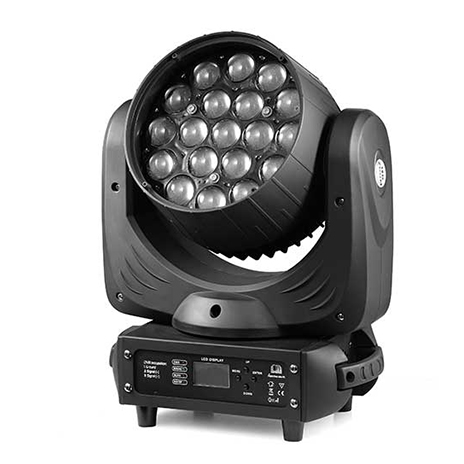

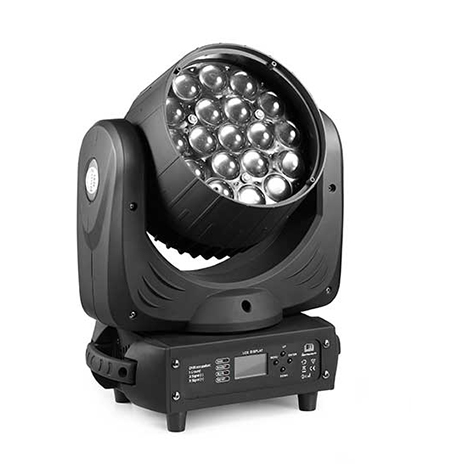

19 PCS 15W RGBW 4 IN 1 ZOOM MOVING HEAD LIGHT
Model：E-MW1915Z

Color mixing spread evenly, 10 ° to 60 ° electronic focusing

Good air path design, better heat dissipation effect

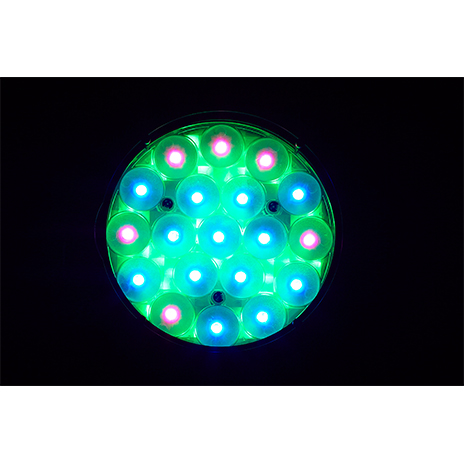

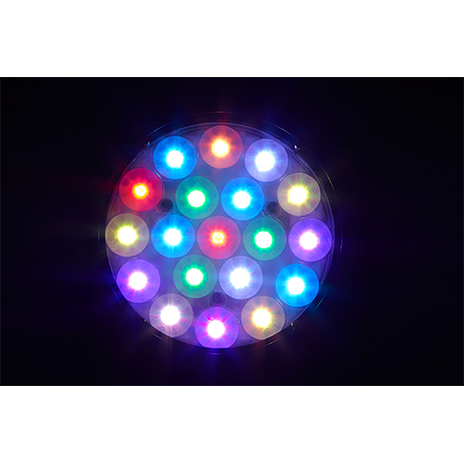

Three circles of LED, each circle individually controlled

Sound active, auto - running, master/slave, DMX various control modes

Fast, ultra-static XY rotation



Photometrics
Light Source:

19x10W RGBW  four in one LED

Beam Angle:
 25°（15°, 45° optional）

POWER

Mains

100-240 VAC, 50/60Hz

Consumption

280W

Power connections:

PowerCon in/out

KEY FEATURES

Pan movement:

540°

Tilt movement:

270°

Color Mixing: RGBW

Strobe:

0-30Hz

Dimming:

4 dimming curve modes

CONTROL

Protocol:

DMX512

DMX channels:

12/16CH

Data connections:

3-pin & 5-pin XLR in/out

Display: LCD
Housing
Material:

High strength temperature engineering plastic shell

IP rating: IP20
Thermal
Cooling: fan cooling
Max. Ambient: 40°C
Min. Ambient: 0°C
Max. Housing: 66°C
Physical
Dimensions:

185 x 310 x 400 mm

Weight: 9.5 KG
Misc / Options
Power Cord: Included (PowerCon)
Mounting Clamp: Not included
Touring Case: Not included
