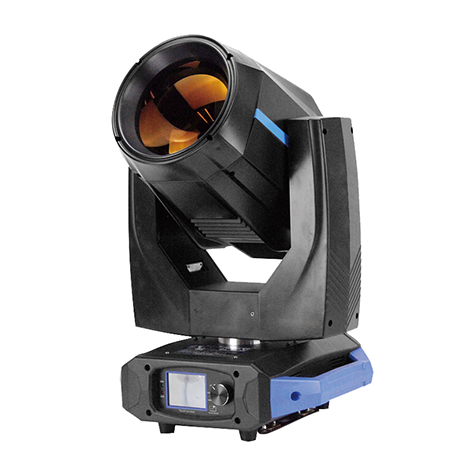

330W MOVING HEAD SPOT/WASH/BEAM 3 IN 1
Model£ºEC-BWS330

One set pattern, wash, beam of three functions in one moving head computer light;

5-30 degree zoom, true 16-bit dimming

A high quality focusing lens projects a small angle beam,

With high speed stroboscopic effect, the beam feels strong.

More impressive, with six rows of mirrors + eight prism effect,

Three-phase motor has fast mechanical operation ability, fast speed, accurate positioning and long running without stepping.

The minimum pattern spot and maximum pattern spot have large variation, clear, clean and good picture quality



Photometrics
Light Source:

330W 15R

POWER

Mains

100-240 VAC, 50/60Hz

Consumption

350W

Power connections:

PowerCon in/out

KEY FEATURES

Pan movement:

540¡ã

Tilt movement

270¡ã

Strobe:

0-30Hz

Dimming:

4 dimming curve modes

CONTROL

Protocol:

DMX512

DMX channels:

16CH

Data connections:

3-pin & 5-pin XLR in/out

Display: LCD
Housing
Material:

High strength temperature engineering plastic shell

IP rating: IP20
Thermal
Cooling: fan cooling
Max. Ambient: 40¡ãC
Min. Ambient: 0¡ãC
Max. Housing: 66¡ãC
Physical
Dimensions:

430 x 430 x 630 mm

Weight: 21 KG
Misc / Options
Power Cord: Included (PowerCon)
Mounting Clamp: Not included
Touring Case: Not included
