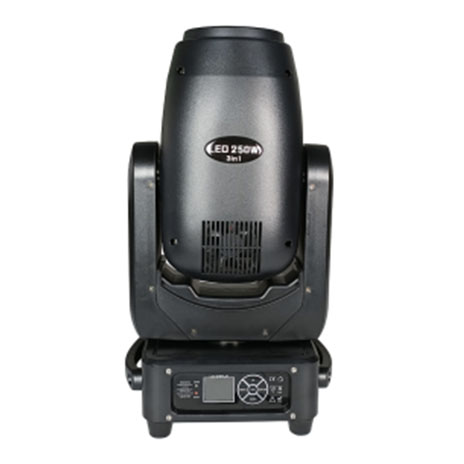

| LED 250W Beam Spot Wash 3in1 Moving Head Light |
| Model：EC-SBW250 |
 |
|
This product is 250W beam, spot, wash 3 in 1 moving head light, suitable for various places, performances, weddings, hotel bars, KTV, slow-moving bars, clear bars, multi-functional conference halls and other entertainment places.
|
|
|
|
| Photometrics
|
| Light Source:
|
single high-brightness 250W LED
|
Beam Angle:
|
9-30 degrees
|
Gobo plate:
|
two gobo plates, 7 of which can be rotated and white,
|
|
the outer diameter of the gobo is 19.8MM, the inner diameter is 16MM; 8 fixed patterns plus white
|
Color plate:
|
9 colors plus white
|
Prism:
|
a rotatable 3 prism
|
Aperture:
|
zoom in and zoom out function
|
|
POWER
|
|
Mains
|
100-240 VAC, 50/60Hz
|
|
Consumption
|
300W
|
|
Power connections:
|
PowerCon in/out
|
|
KEY FEATURES
|
|
Pan movement:
|
540°
|
|
Tilt movement:
|
270°
|
|
Color Mixing:
|
RGBW
|
|
Strobe:
|
0~25 times/SEC, and adjustable stroboscopic speed
|
|
Dimming:
|
0-100% LED Linear dimming
|
|
CONTROL
|
|
Protocol:
|
DMX512
|
|
DMX channels:
|
18 channels
|
| Data connections:
|
3-pin XLR in/out
|
|
|
| Housing
|
| Material:
|
Flame-retardant plastic and aluminum alloy
|
| IP rating:
|
IP20
|
| Thermal
|
| Cooling:
|
fan cooling
|
| Max. Ambient:
|
40°C
|
| Min. Ambient:
|
0°C
|
| Max. Housing:
|
66°C
|
| Physical
|
| Dimensions:
|
310*230*530 mm
|
Net weight:
|
14.5KG
|
| Misc / Options
|
| Power Cord:
|
Included (PowerCon)
|
| Mounting Clamp:
|
Not included
|
| Touring Case:
|
Not included
|
|
