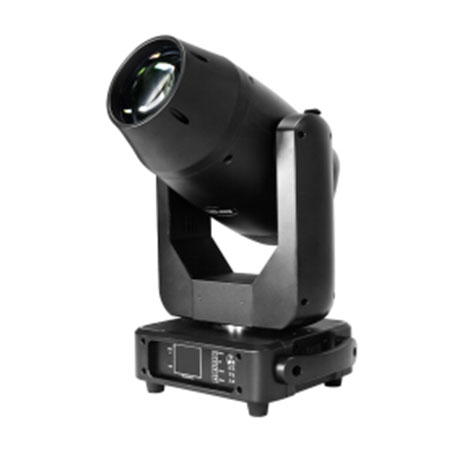

| LED 400W CMY BWS 3 in 1 Moving Head |
| Model：EC-SBW400 |
 |
|
The LED Beam Moving Head 400W 3In1 Stage Light with CTO CMY Effect Spot BSW Wash Zoom is a sophisticated lighting fixture designed for professional stage and event lighting. This light combines multiple lighting effects into one unit, offering a wide range of possibilities for creating dynamic and visually appealing light shows.
|
|
|
|
|
Photometrics
|
|
Light Source:
|
ECO350-80-R00-000
|
|
Scaling angle:
|
The beam is dyed at 2.7-36 °, with a pattern of 4-36 °
|
|
Color:
|
8 colors+white. Color half color function
|
|
Color system:
|
Independent CMY+CTO color mixing system
|
|
Fixed pattern:
|
12 fixed patterns+white
|
|
Rotating pattern:
|
7 glass patterns, each with independent forward
and reverse rotation
|
|
Prism system:
|
standard with single 6-row prisms and 8+8 prisms,
each prism can independently reverse and forward
|
|
POWER
|
|
Mains
|
100-240 VAC, 50/60Hz
|
|
Consumption
|
600W
|
|
Power connections:
|
PowerCon in/out
|
|
KEY FEATURES
|
|
Pan movement:
|
540°
|
|
Tilt movement:
|
270°
|
|
Color Mixing:
|
RGBW
|
|
Strobe:
|
0-30 times/second. Adjustable strobe effect.
Strobe macro function
|
|
Dimming:
|
0-100% LED Linear dimming
|
|
Focusing:
|
Linear adjustment from 4 meters to 50 meters
|
|
Atomization:
|
1 independent atomization effect,
soft and natural light spot
|
|
CONTROL
|
|
Protocol:
|
DMX512
|
|
DMX channels:
|
23 channels
|
| Data connections:
|
3-pin XLR in/out
|
|
|
|
Housing
|
| Material:
|
High temperature resistant plastic
|
|
IP rating:
|
IP20
|
|
Thermal
|
|
Cooling:
|
using axial fans to enhance cooling
|
|
Max. Ambient:
|
40°C
|
|
Min. Ambient:
|
0°C
|
|
Max. Housing:
|
66°C
|
|
Physical
|
| Dimensions:
|
380 * 270 * 650 mm
|
|
Net weight:
|
22.5KG
|
|
Misc / Options
|
|
Power Cord:
|
Included (PowerCon)
|
|
Mounting Clamp:
|
Not included
|
|
Touring Case:
|
Not included
|
|
