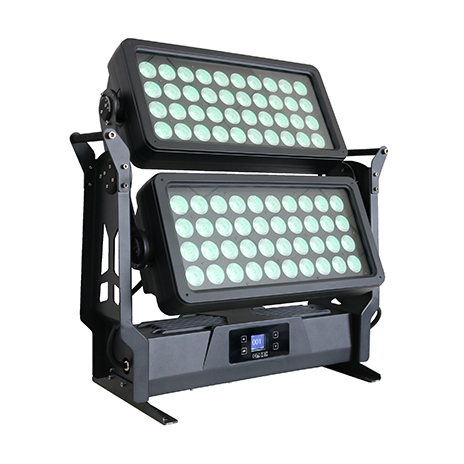

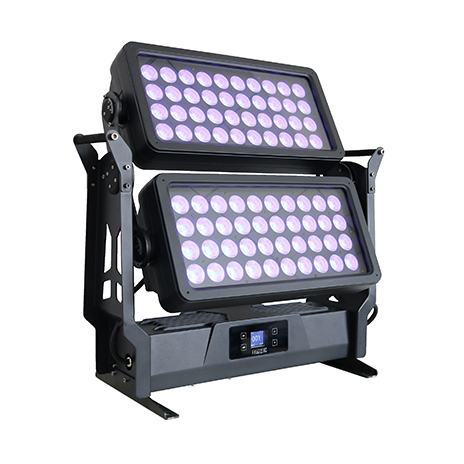

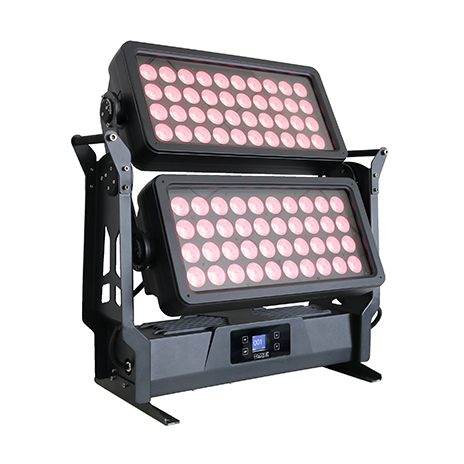

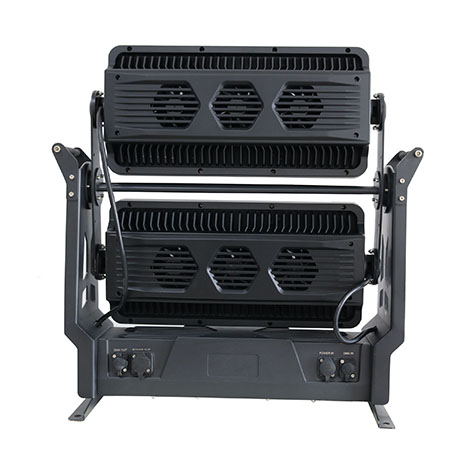

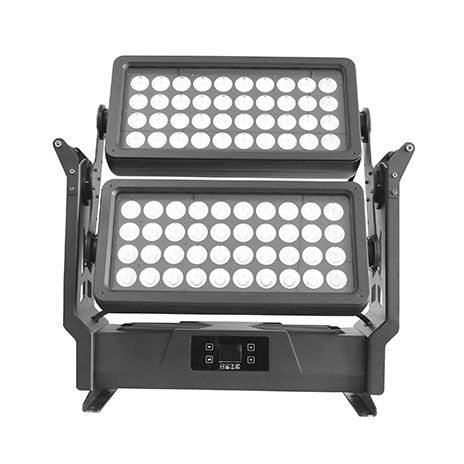

| 80X20W RGBW 4in1 LED Outdoor Wash Light |
| Model：EC-W2080 |
 |
|
This product is designed for indoor/outdoor use. Suitable applications include wash or effect lighting for architectural, stage or nightclub applications. This product can also be installed for use in signage and advertising using the dynamic functions available with DMX512 control. Direct input of DMX512 signal allows the units to be controlled from any DMX512 controller. This product can be operated as a single unit or in multiple units for large applications.
|
|
|
|
| Photometrics
|
| Light Source:
|
80X20W RGBW 4in1 LED
|
| Beam Angle:
|
25º (15°/45°/60°optional)
|
| Key Features
|
| Color Mixing:
|
RGBW 4 in 1
|
| Strobe:
|
0-20Hz
|
| Dimming:
|
0-100% linear dimming
|
| Control
|
| Control Mode:
|
DMX, Auto, Master/Slave mode
|
| DMX Channels:
|
4/8/11CH
|
Built-in Programs:
|
Yes
|
| Display:
|
LCD color display with 4 touch buttons
|
| Power
|
| Mains:
|
100 - 240 VAC, 50/60 Hz
|
| Consumption:
|
1600W
|
| I/O
|
| Power connections:
|
PowerCon In/Out
|
| Data connections:
|
XLR In/Out for DMX
|
| Housing
|
| Material:
|
Die-casting aluminum, powder-coated finish
|
| IP rating:
|
IP65
|
| Thermal
|
| Cooling:
|
fan cooling
|
| Max. Ambient:
|
40°C
|
| Min. Ambient:
|
0°C
|
| Max. Housing:
|
66°C
|
| Physical
|
| Dimensions:
|
641X123X644mm
|
| Weight:
|
29KG
|
| Misc / Options
|
| Power Cord:
|
Included (PowerCon)
|
| Mounting Clamp:
|
Not included
|
| Touring Case:
|
Not included
|
|
