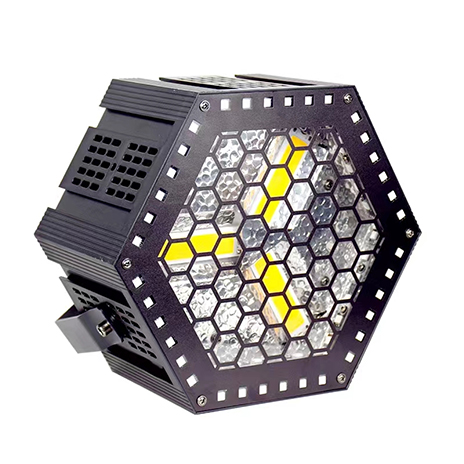

| large LED retro light |
| Model：EC-RL03 |
 |
3x60W LED+76*0.5W RGB LED
Easy installation and high brightness
Suitable for Stage, DJ, Disco, Party, Wedding, Bar, KTV
|
|
|
|
| Photometrics
|
| Light Source:
|
3x60W LED+76*0.5W RGB LED
|
|
|
| Key Features
|
| Color temperature：
|
2200K+RGB
|
| Strobe:
|
0-20 times/second
|
| Dimming:
|
0-100% linear dimming
|
| Control
|
| Control Mode:
|
auto-running/master-slave connection /DMX512
|
| DMX Channels:
|
1CH/3CH/6CH-Pixel/10CH
|
Built-in Programs:
|
Yes
|
| Monitor:
|
LCD monitor
|
| Power
|
| Mains:
|
100 - 240 VAC, 50/60 Hz
|
| Consumption:
|
220W
|

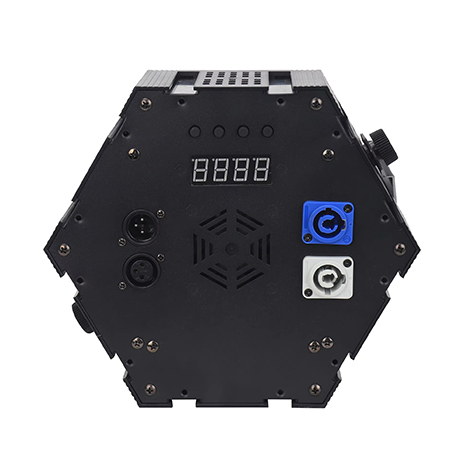

| I/O
|
| Power connections:
|
PowerCon In/Out
|
| Data connections:
|
XLR In/Out for DMX
|
| Housing
|
|
|
| IP rating:
|
IP20
|
| Thermal
|
| Cooling:
|
fan cooling
|
| Max. Ambient:
|
40°C
|
| Min. Ambient:
|
0°C
|
| Max. Housing:
|
66°C
|
| Physical
|
| Dimensions:
|
280*265*260mm
|
| Weight:
|
3 kg
|
| Misc / Options
|
| Power Cord:
|
Included (PowerCon)
|
| Mounting Clamp:
|
Not included
|
| Touring Case:
|
Not included
|
|
