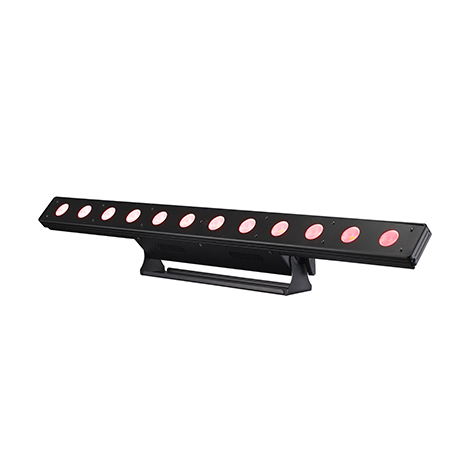

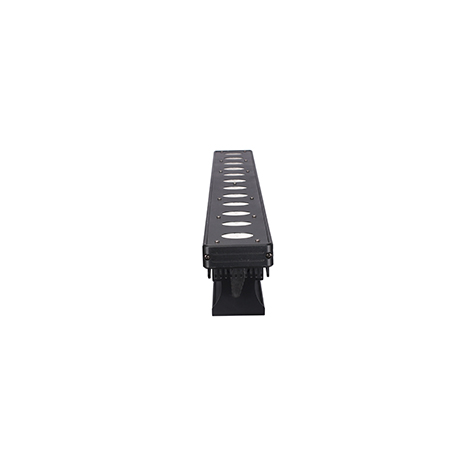

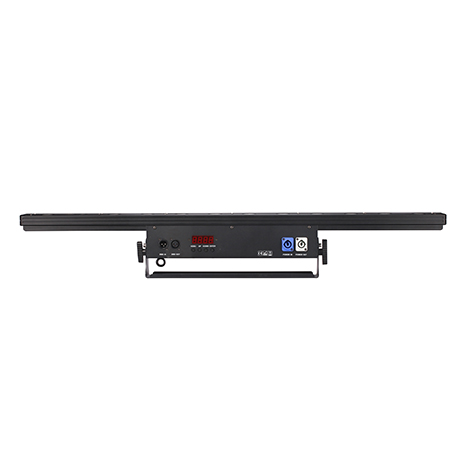

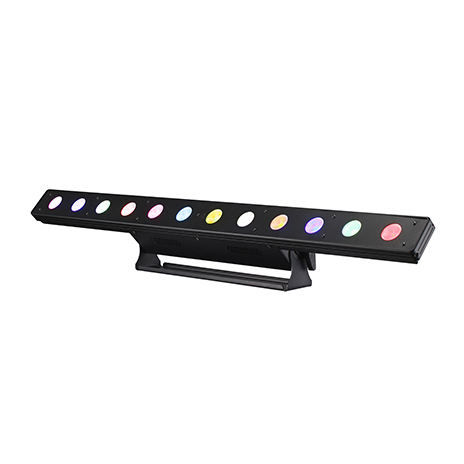

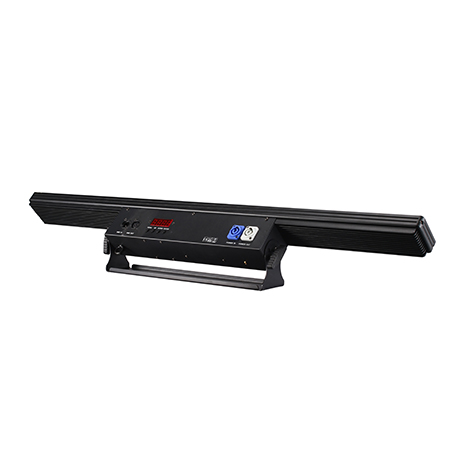

| 12x12W RGBWA 5 in 1 LED bar light |
| Model：EC-W125 |
 |
|
This product is designed for indoor use. Suitable applications include wash or effect lighting for architectural, stage or nightclub applications. It can also be installed for use in signage and advertising using the dynamic functions available with DMX512 control. Direct input of DMX512 signal allows the units to be controlled from any DMX512 controller. This product can be operated as a single unit or in multiple units for large applications.
|
|
|
|
| Photometrics
|
| Light Source:
|
12*12W high power LED (5 in 1 RGBWA)
|
| Lens angle:
|
25°
|
| Key Features
|
Color mixing:
|
RGBWA color mixing, colorful infinite change
|
| Strobe:
|
0-30Hz
|
| Dimmer:
|
0-100% linear dimmer
|
| Control
|
| Control Mode:
|
international standard DMX512,Master/Slave mode, Auto mode RDM intelligent control
|
| DMX Channels:
|
5/6/10/12/24/60/63/67 channel
|
Built-in Programs:
|
Yes
|
| Display:
|
LED digital display
|
| Power
|
| Mains:
|
100 - 240 VAC, 50/60 Hz
|
| Consumption:
|
140W
|
| I/O
|
| Power connections:
|
PowerCon In/Out
|
| Data connections:
|
XLR In/Out for DMX
|
| Housing
|
| Material:
|
Aluminum
|
| IP rating:
|
IP20
|
| Thermal
|
| Cooling:
|
natural heat dissipation
|
| Max. Ambient:
|
40°C
|
| Min. Ambient:
|
0°C
|
| Max. Housing:
|
66°C
|
| Physical
|
| Dimensions:
|
1000×74×151mm
|
| Weight:
|
4.0 KGS
|
| Misc / Options
|
| Power Cord:
|
Included (PowerCon)
|
| Mounting Clamp:
|
Not included
|
| Touring Case:
|
Not included
|
|
