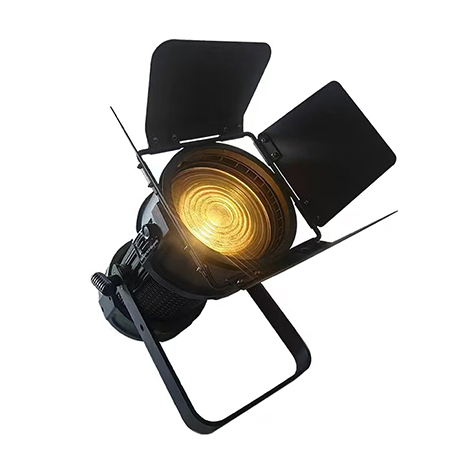

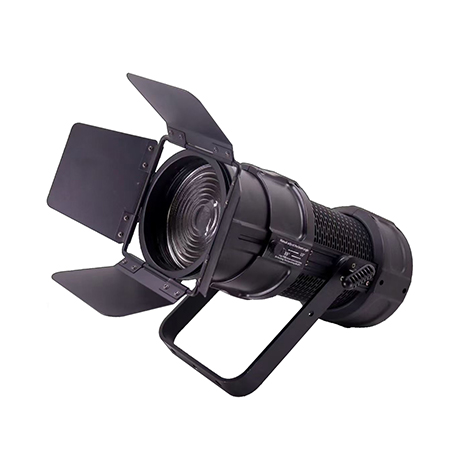

| 100W mini LED fresnel light |
| Model：EC-FL100 |
 |
|
The 100W LED Zoom Fresnel Light features a CRI>95 for exceptional color accuracy and uses an imported Citizen COB integrated light source. With manual 15-35 degree beam angle, copper tube heat conduction, no fan and good temperature control, it ensures reliable performance. Certified by CE, it complies with EU safety standards, ensuring market access.
|
|
|
|
|
Photometrics
|
|
Light Source:
|
100W citizen COB LED
|
Optics:
|
15-35 degrees linear manual zoom, 24K flicker-free light
source management system, no glare and glare
|
|
Key Features
|
CRI:
|
Ra(CRI)≥95,TLCI≥90
|
CCT:
|
3200K,5600K optional or 3000K-6000K
color temperature adjustable
|
| Dimming:
|
0~100% linear dimming, so that the dimming process,
no flicker, shake, jump, dimming change color
|
|
Control
|
Control panel:
|
LCD digital display + four buttons
|
|
Opetation
mode:
|
DMX/Auto/Sound-actived control
|
|
DMX
Channels:
|
1CH/2CH
|
|
Built-in
Programs:
|
Yes
|
|
Power
|
| Mains:
|
100 - 240 VAC, 50/60 Hz
|
| Consumption:
|
110W
|
|
I/O
|
|
Power
connections:
|
PowerCon In/Out
|
|
Data
connections:
|
XLR In/Out for DMX
|
|
Housing
|
| Material:
|
AL
|
| IP rating:
|
IP20
|
|
Thermal
|
| Cooling:
|
air convection without fan natural heat dissipation
|
|
Max. Ambient:
|
40°C
|
|
Min. Ambient:
|
0°C
|
|
Max. Housing:
|
66°C
|
|
Physical
|
| Dimensions:
|
455*265*292 mm
|
|
Weight:
|
5.0 KG
|
|
Misc / Options
|
|
Power Cord:
|
Included (PowerCon)
|
|
Mounting
Clamp:
|
Not included
|
| Touring Case:
|
Not included
|
|
