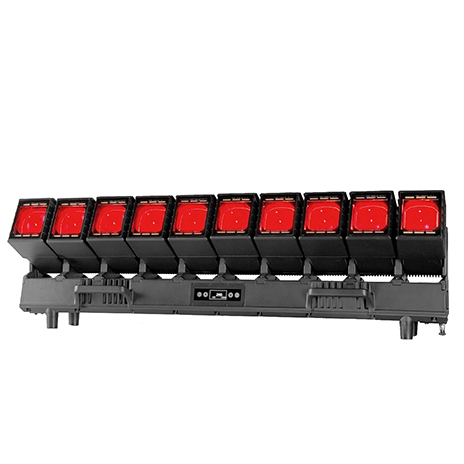

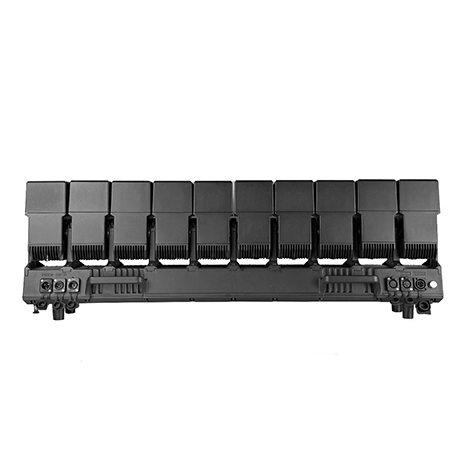

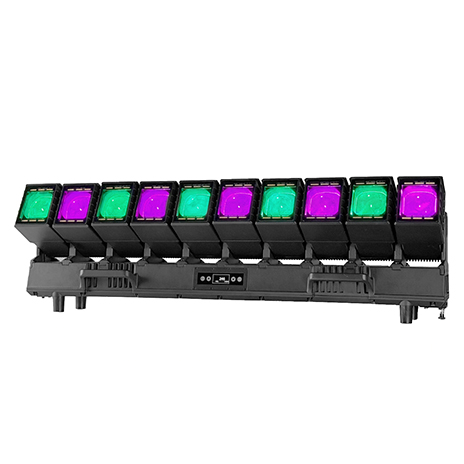

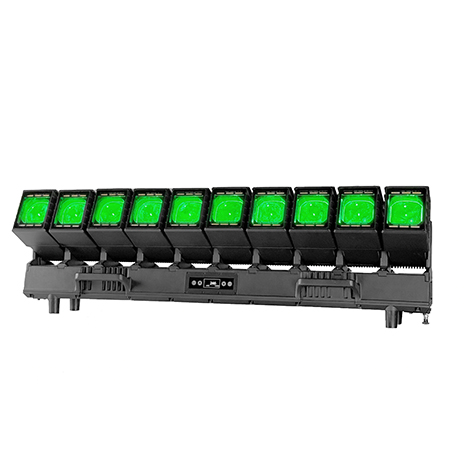

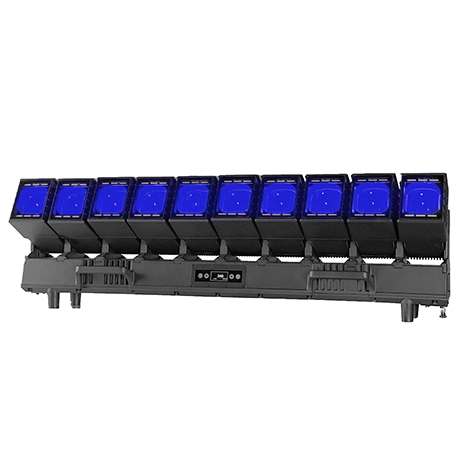

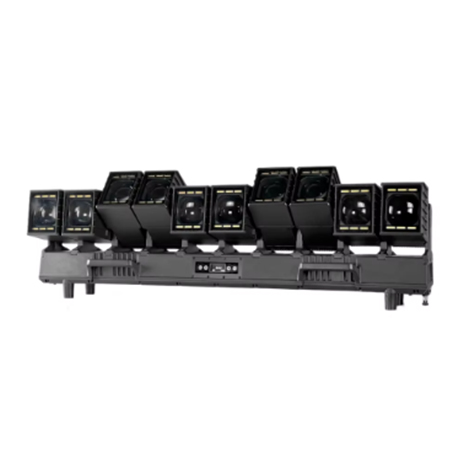

| 10x60W RGBW+RGB auxiliary light waterproof effect wave bar light |
| Model：EC-W1060Z |
 |
|
High power 10x60W RGBW LED+RGB auxiliary light effect wave bar light has features include single swing, staining, beam modes. Compact design with IP65 rating ensures reliable performance in various settings like parties, clubs, and shows outdoor venues.
|
|
|
|
| Photometrics
|
| Light Source:
|
10 * 60W RGBW 4in1 LEDs + 120x2W LEDs
cold white&warm white 2in1 Outer Circle
|
| Main light Beam angle:
|
4.5°-36°
|
Auxiliary light Beam angle:
|
120°
|
| Key Features
|
| Color mixing effect：
|
RGBW color mixing or CMY color mixing effect
|
| Strobe 1:
|
120X1W 6500K white lights
|
Strobe 2:
|
120X1W 3000K white lights
|
Strobe:
|
0-25Hz, a variety of strobe effects to choose from, adjustable speed.
|
| Dimmer:
|
0-100% linear dimming
|
| Control
|
| Control Mode:
|
DMX512/Master-Slave/Auto Run/RDM/Manual
|
| DMX Channels:
|
29/56/216/262/282/142/ 247CH
|
Built-in Programs:
|
Yes
|
|
|
|
|
| Mains:
|
100 - 240 VAC, 50/60 Hz
|
| Consumption:
|
1000W
|
| I/O
|
| Power connections:
|
PowerCon In/Out
|
| Data connections:
|
XLR In/Out for DMX
|
| Housing
|
| Material:
|
Aluminum+plastic
|
| IP rating:
|
IP66
|
| Cooling:
|
Fan heat dissipation
|
| Max. Ambient:
|
40°C
|
| Min. Ambient:
|
0°C
|
| Max. Housing:
|
66°C
|
| Physical
|
| Dimensions:
|
1000X199X325mm
|
| Weight:
|
26.6KG
|
| Misc / Options
|
| Power Cord:
|
Included (PowerCon)
|
| Mounting Clamp:
|
Not included
|
| Touring Case:
|
Not included
|
|
